主页 › 产品中心微动开关Switch发光轻触开关R2090

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R2090

•  Circuit:SPST
•  Function:Momentary
•  Contact Rating:1~50mA@5V~24VDC(resistive Load)
•  Contact Resistance:100mΩ max.(initialvalue)
•  Insulation Resistance:100MΩ min
•  Dielectric Strength:500 RMS @ sea level
•  Operating Force:Standard Force:180±30gf
                                 High Force:260±50gf
•  Operating Temperature:-25℃ to 70℃
•  Total Travel:0.25+0.2/-0.1mm
•  Electrical Life:180gf(standard force):500,000 operations min.
                             260gf(high force):300,000 operations min.

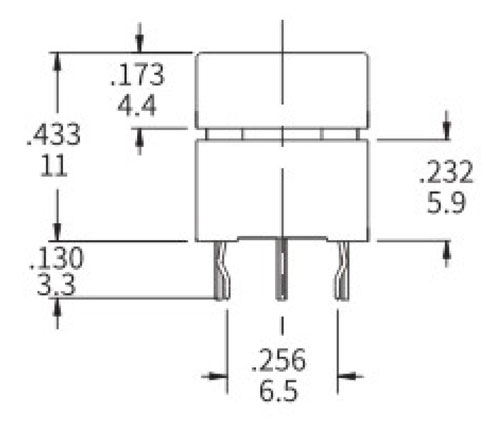

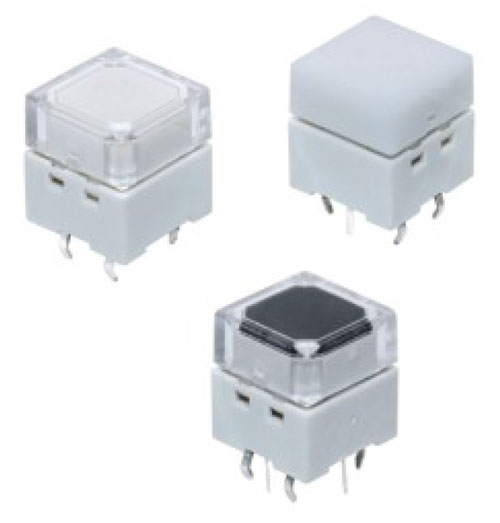

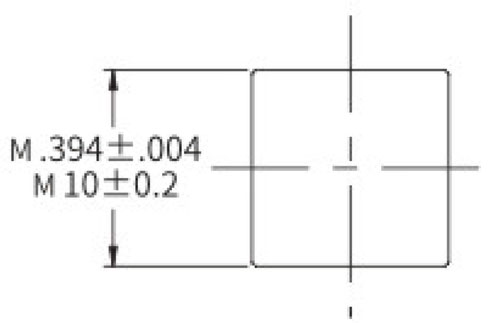

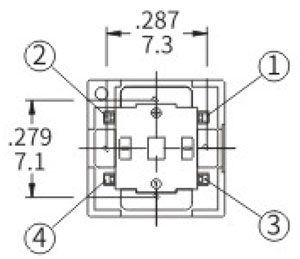

 带灯轻触开关R2090实拍图 带灯轻触开关R2090结构图  开关R2090结构图  R2090结构图



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrical Life Total Travel Operating Temperature PDF下载
R2090-011 1~50mA@5V~24VDC(resistive Load) 100mΩ max.(initialvalue) 100MΩ min 500 RMS @ sea level Standard Force:180±30gf High Force:260±50gf 180gf(standard force):500,000 operations min. 260gf(high force):300,000 operations min. 0.25+0.2/-0.1mm -25℃ to 70℃ 暂无
R2090-002G-A13 1~50mA@5V~24VDC(resistive Load) 100mΩ max.(initialvalue) 100MΩ min 500 RMS @ sea level Standard Force:180±30gf High Force:260±50gf 180gf(standard force):500,000 operations min. 260gf(high force):300,000 operations min. 0.25+0.2/-0.1mm -25℃ to 70℃ 暂无
