主页 › 产品中心微动开关Switch发光轻触开关R592/R592B

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R592/R592B

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ Max
•  Insulation Resistance:100MΩ min(250VDC)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:160±50g
•  Electric Life:100,000 cycles
•  Operating Temperature Range:-20℃ ~ + 70℃
•  Travel:0.25±0.1 mm

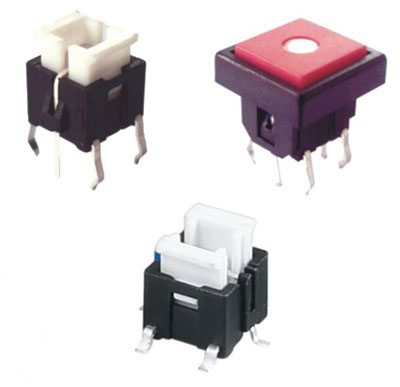

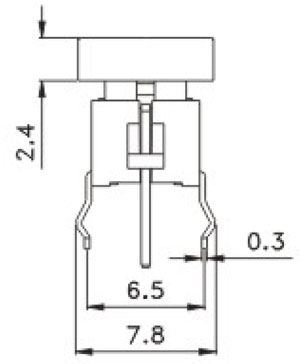

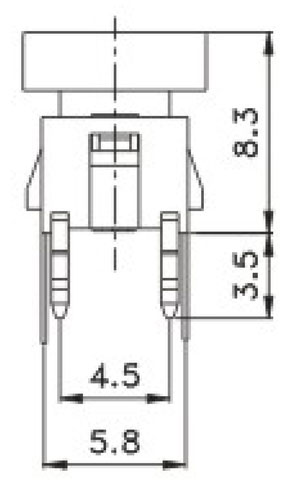

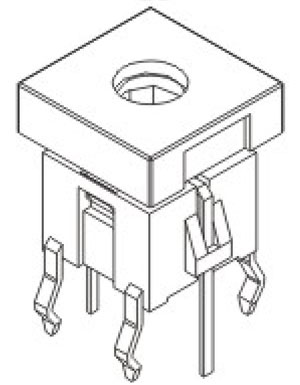

  带灯轻触开关R592/R592B实拍图      带灯轻触开关R592/R592B结构图              开关R592/R592B结构图            R592/R592B结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel PDF下载
R592-1L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592-1 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592-1ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592-1M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-102L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-102 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-108L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-108 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1013L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1013 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1010L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1010 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1014L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1014 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-101ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-101M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-102ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-102M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-108M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-108ML 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1013M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-1013ML 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-111 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-111L 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-112 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R592B-112L 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
