小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R597

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ Max
•  Insulation Resistance:250VDC FOR 1 min
•  Dielectric Strength:250VAC(50/60Hz) FOR 1 min
•  Life Test:100,000 cycles
•  Operation Force&Travel:See Specification

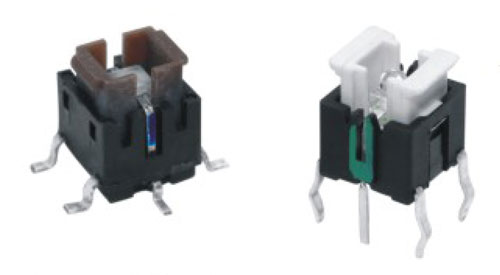

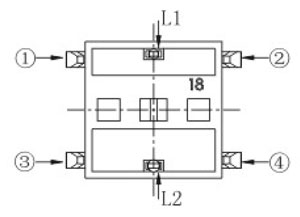

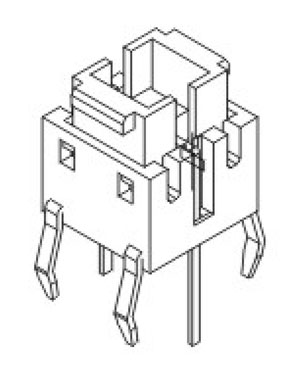

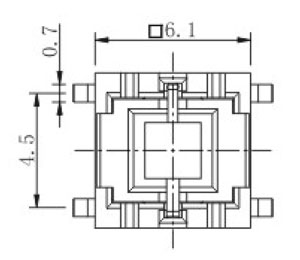

 带灯轻触开关R597实拍图 带灯轻触开关R597结构图         开关R597结构图       R597结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Life Test Operation Force&Travel PDF下载
R597-1L 12VDC 50mA 100mΩ Max 250VDC FOR 1 min 250VAC 50/60Hz FOR 1 min 100,000 cycles See Specification 暂无
R597-1ML 12VDC 50mA 100mΩ Max 250VDC FOR 1 min 250VAC 50/60Hz FOR 1 min 100,000 cycles See Specification 暂无
