主页 › 产品中心其它产品微动开关Switch发光轻触开关R2998L

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
防水带灯轻触开关R2998L

•  Pole-Position:Momentary Type,SPST
•  Contact Rating:12VDC,50mA
•  Contact Resistance:500mΩmax,5VDC;1A,
                                      by Method of Voltage DROP
•  Insulation Resistance:100MΩ min.100VDC for 1 minute
•  Dielectric Strength:Breakdown is not Allowable;
                                    250 VAC for 1 Minute
•  Operating Force:200±80gf;450±150gf
•  Operating Temperature Range:-20℃ ~70℃
•  Operating Life:100,000 cycles
•  Total Travel:0.20±0.10mm

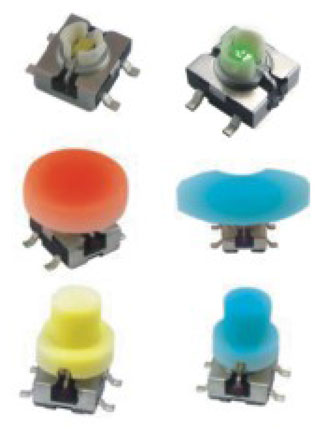

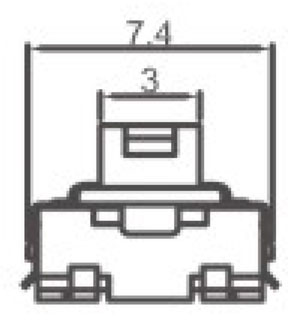

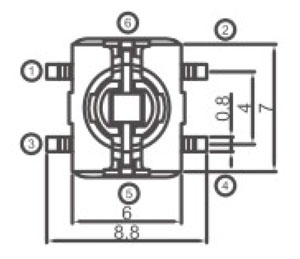

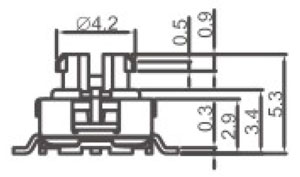

  防水带灯轻触开关R2998L实拍图      防水带灯轻触开关R2998L结构图      防水开关R2998L结构图       R2998L结构图



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Temperature Operating Life Total Travel PDF下载
R2998L-M-2-B-V 12VDC,50mA 500mΩmax,5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf;450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暂无
R2998L-H-2-Y-V 12VDC,50mA 500mΩmax,5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf;450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暂无
R2998L-AM-2-Y-V 12VDC,50mA 500mΩmax,5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf;450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暂无
R2998L-M-2-Y-V 12VDC,50mA 500mΩmax,5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf;450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暂无
