小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R509K

•  Rating:35VDC 10mA
•  Travel:1.0 mm
•  Contact Resistance:50mΩ Max
•  Insulation Resistance:100MΩ min(DC 250V)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:130±60g/200±80g
•  Electric Life:100,000/50,000 cycles
•  Operating Temperature Range:-20℃ ~ + 70℃

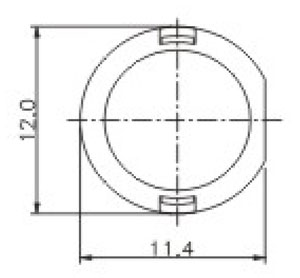

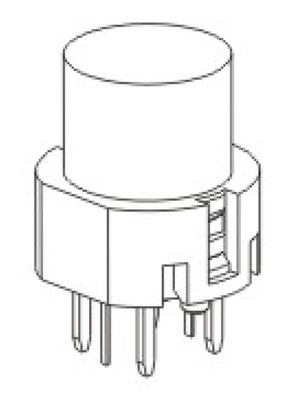

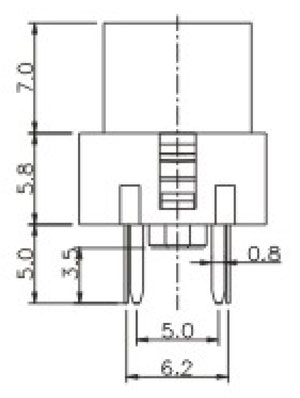

 带灯轻触开关R509K实拍图 带灯轻触开关R509K结构图           开关R509K结构图           R509K结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel PDF下载
R509K-01L(With LED) 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-01 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-03L(With LED) 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-03 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-04L(With LED) 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-04 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-05 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
R509K-06 35VDC 10mA 50mΩ Max 100MΩ min(DC 250V) 250VAC 50/60Hz FOR 1 min 130±60g/200±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 1.0 mm 暂无
