小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R591

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ Max
•  Insulation Resistance:100MΩ min(250VDC)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:160±50g/250±80g
•  Electric Life:100,000/50,000 cycles
•  Operating Temperature Range:-20℃ ~ + 70℃
•  Travel:0.25±0.1 mm

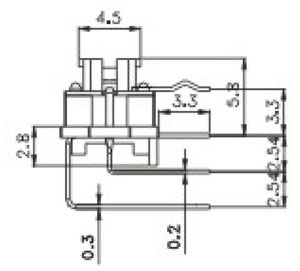

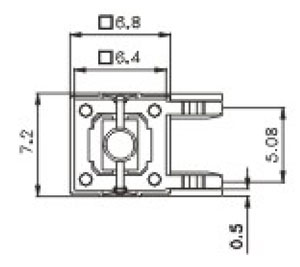

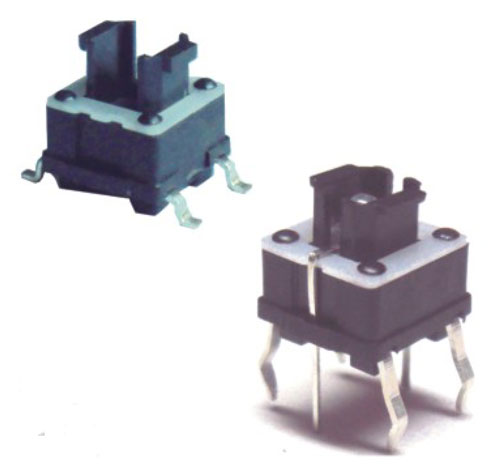

带灯轻触开关R591实拍图      带灯轻触开关R591结构图       开关R591结构图       R591结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel PDF下载
R591-2RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-2R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-1L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-1 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-2L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-2 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-4L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-4 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-2ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-2M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-5(Waterproof switch) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
R591-5L(Waterproof illuminated switch) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暂无
