主页 › 产品中心微动开关Switch发光轻触开关R2590/91

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R2590/91

•  Rating:12VDC,50mA
•  Contact Resistance:≤0.05Ω
•  Life Cycle:100,000 Cycles
•  Insulation Resistance:≥100mΩ max
•  Operating Force:160±50gf,250±50gf
•  Working Temperature:-25℃ ~+75℃
•  Withstand Voltage:AC250V/1 Minute
•  Storage Temperature:-25℃ ~+75℃

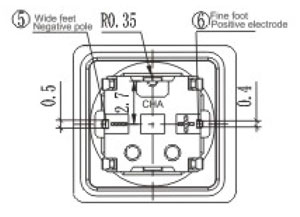

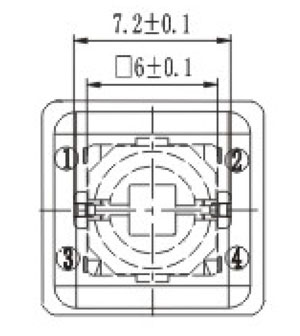

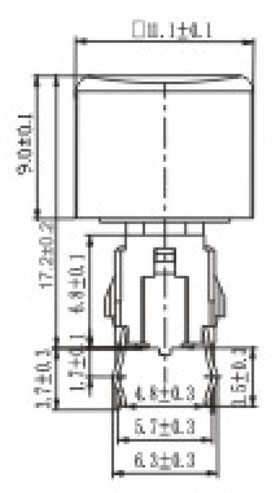

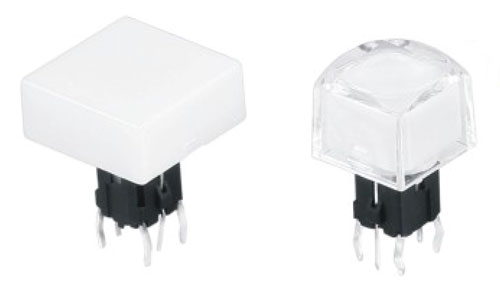

   带灯轻触开关R2590/91实拍图  带灯轻触开关R2590/91结构图      带灯轻触开关结构图      R2590/91结构图



Part Number Rating Contact Resistance Insulation Resistance Operating Force Working Temperature Withstand Voltage Life Cycle Storage Temperature PDF下载
R2590 12VDC,50mA ≤0.05Ω ≥100mΩ max 160±50gf,250±50gf -25℃ ~+75℃ AC250V/1 Minute 100,000 Cycles -25℃ ~+75℃ 暂无
R2591 12VDC,50mA ≤0.05Ω ≥100mΩ max 160±50gf,250±50gf -25℃ ~+75℃ AC250V/1 Minute 100,000 Cycles -25℃ ~+75℃ 暂无
展开
