主页 › 产品中心微动开关Switch发光轻触开关R593

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R593

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ Max
•  Insulation Resistance:100MΩ min(250VDC)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:160±50g
•  Electric Life:50,000 cycles
•  Operating Temperature Rang:-20℃ ~ + 70℃

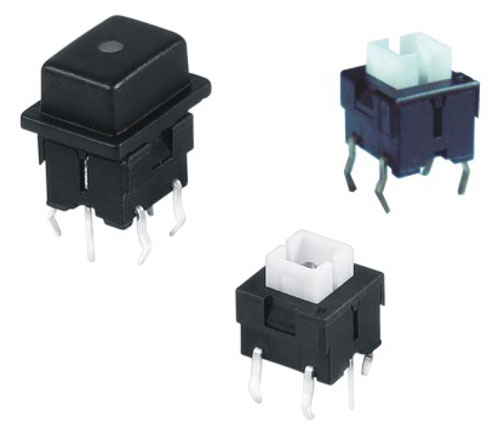

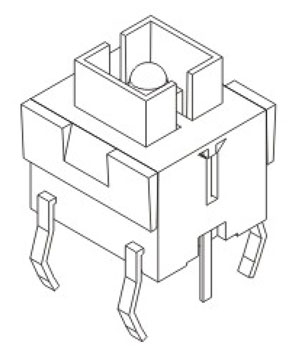

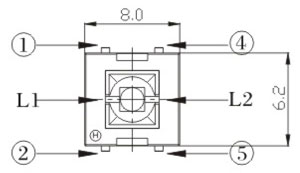

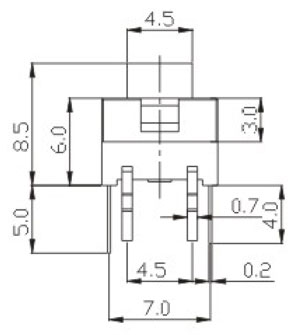

     带灯轻触开关R593实拍图       带灯轻触开关R593结构图         开关R593结构图         R593结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature PDF下载
R593-1L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 50,000 cycles -20℃ ~ + 70℃ 暂无
R593-1 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g 50,000 cycles -20℃ ~ + 70℃ 暂无
