小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R596B

•  Rating:12VDC 50mA
•  Travel:≥1.0 mm
•  Contact Resistance:50mΩ Max
•  Insulation Resistance:100MΩ min(250VDC)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:≥200g
•  Electric Life:100,000 cycles
•  Operating Temperature Rang:-20℃ ~ + 70℃

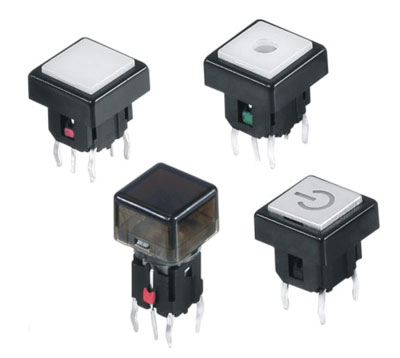

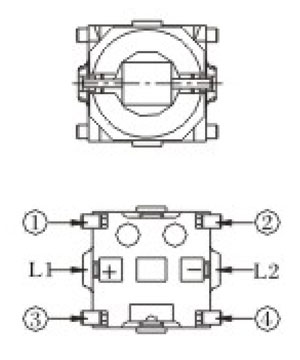

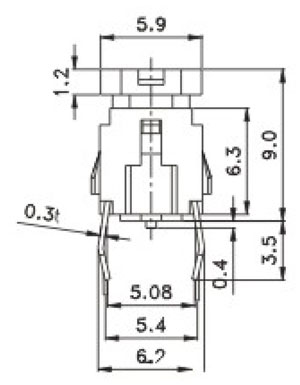

 带灯轻触开关R596B实拍图    带灯轻触开关R596B结构图          开关R596B结构图          R596B结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Rang Travel PDF下载
R596-1L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596-1 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596-1ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596-1M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1011L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1011 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-105L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-105 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1012L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1012 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1311L(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1311 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1RL(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1R 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1011ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1011M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1012ML(With LED) 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
R596B-1012M 12VDC 50mA 50mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min ≥200g 100,000 cycles -20℃ ~ + 70℃ ≥1.0 mm 暂无
