主页 › 产品中心微动开关Switch发光轻触开关R2901

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R2901

•  Contact Rating:50mA@12VDC
•  Electrical Life:1,000,000 cycles
•  Travel:0.4±0.15mm
•  Contact Resistance:100mΩ Max.(initial)
•  Insulation Resistance:100 megohms min.@500VDC
•  Dielectric Strength:250VAC for 1min
•  Operating Temperature:-20℃ ~70℃

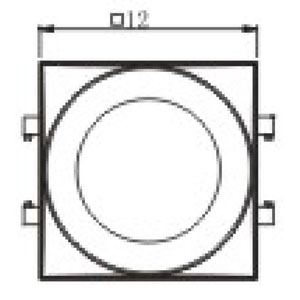

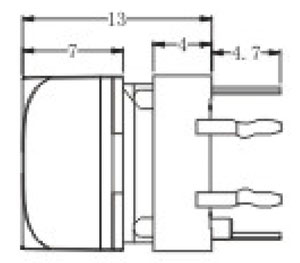

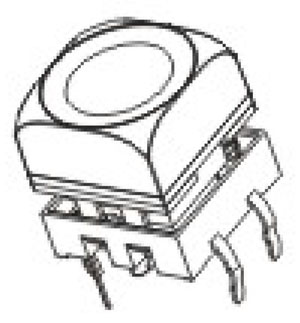

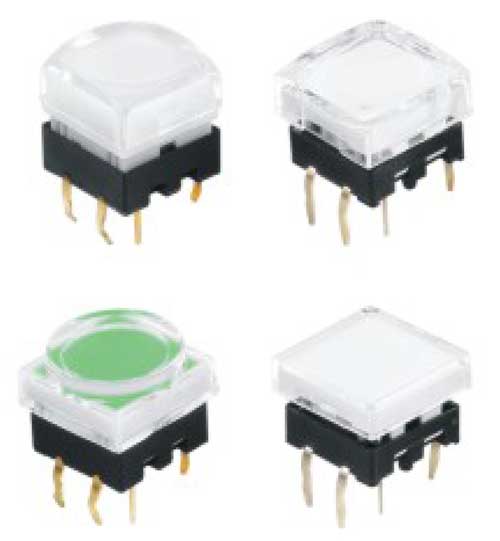

带灯轻触开关R2901实拍图         带灯轻触开关R2901结构图          带灯轻触开关结构图          R2901结构图



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Electrical Life Travel Operating Temperature PDF下载
R2901-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901B-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901A-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901C-TW-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901E-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901F-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901B-TW-□-□□-M-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901K-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901D-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901G-TW-□-□□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
R2901H-T-□-V 50mA@12VDC 100mΩ Max.(initial) 100 megohms min.@500VDC 250VAC for 1min 1,000,000 cycles 0.4±0.15mm -20℃ ~70℃ 暂无
