主页 › 产品中心其它产品微动开关Switch发光轻触开关R2998

小型带灯轻触开关为集轻触开关内置发光LED灯复合式开关,具有外观绚丽色彩多样化,可以符合波峰焊与回流焊,产品常规用于笔记本电脑,家电,电子电器控制按钮功能。
带灯轻触开关R2998

•  Pole-Position:Momentary Type,SPST with LED
•  Contact Rating:12VDC,50mA MAX,1VDC 10μA MIN
•  Contact Resistance:500mΩmax,1.5VDC;100mA,
                                      by Method of Voltage DROP
•  Insulation Resistance:100MΩ min.100VDC for 1 minute
•  Dielectric Strength:Breakdown is not Allowable;
                                     250 VAC for 1 Minute
•  Operating Force:160+75/-30 gf
•  Operating Life:30,000 cycles
•  Operating Temperature Range:-20℃ ~70℃
•  Total Travel:0.25+0.2/-0.1mm

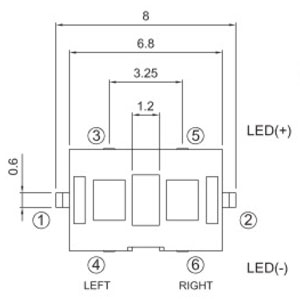

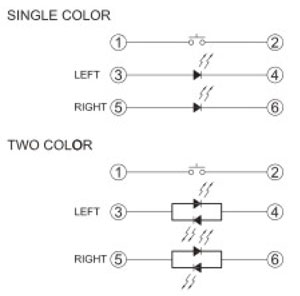

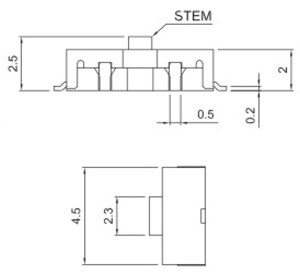

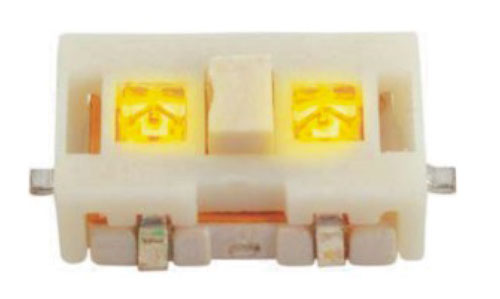

  带灯轻触开关R2998实拍图  带灯轻触开关R2998结构图       开关R2998结构图       R2998结构图



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Life Operating Temperature Total Travel PDF下载
R2998-R□□U-T/R 12VDC,50mA MAX,1VDC 10μA MIN 500mΩmax,1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 160+75/-30 gf 30,000 cycles -20℃ ~70℃ 0.25+0.2/-0.1mm 暂无
