Home › Product CenterSwitchIlluminated Tactile SwitchR591B

The small light-touch tact switch is a set of light-touch switch with built-in light-emitting LED light composite switch. It has diversified appearance and also can meet the wave soldering and reflow soldering. commonly used in notebook computers, home appliances, electronic and electrical control buttons.
Illuminated Tactile Switches R591B

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ Max
•  Insulation Resistance:100MΩ min(250VDC)
•  Dielectric Strength:250VAC 50/60Hz FOR 1 min
•  Operating Force:160±50g/250±80g
•  Electric Life:100,000/50,000 cycles
•  Operating Temperature Range:-20℃ ~ + 70℃
•  Travel:0.25±0.1 mm

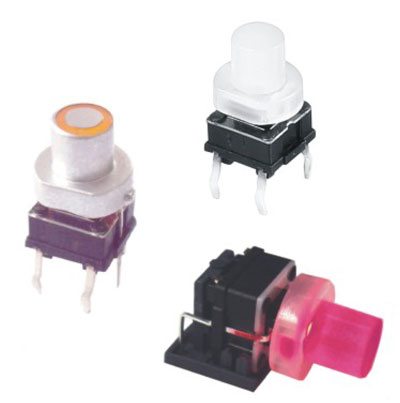

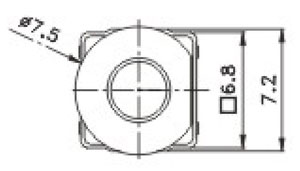

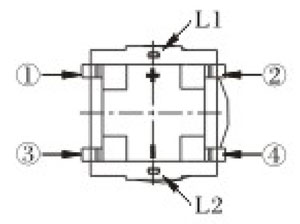

       Illuminated Tactile Switches R591B Figure     Illuminated Tactile Switches R591B Structure Diagram       Switch R591B Structure Diagram       R591B Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel Download
R591B-211L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-211 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-211ML(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-211M 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-2RW 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-21RW 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-2RWL(25)(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-21RWL(25)(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-2RWL(45)(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-21RWL(45)(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-21RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
R591B-21R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000/50,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm NULL
