Home › Product CenterSwitchIlluminated Tactile SwitchR2091

The small light-touch tact switch is a set of light-touch switch with built-in light-emitting LED light composite switch. It has diversified appearance and also can meet the wave soldering and reflow soldering. commonly used in notebook computers, home appliances, electronic and electrical control buttons.
Illuminated Tactile Switches R2091

•  Contact Rating:50mA,24 VDC
•  Contact Resistance:50mΩ max.(initial)
•  Insulation Resistance:10MΩ min.100VDC
•  Dielectric Strength:250VAC/1 min
•  Operation Temperature:-40℃ to + 160℃
•  Electric Life:1,000,000 cycles

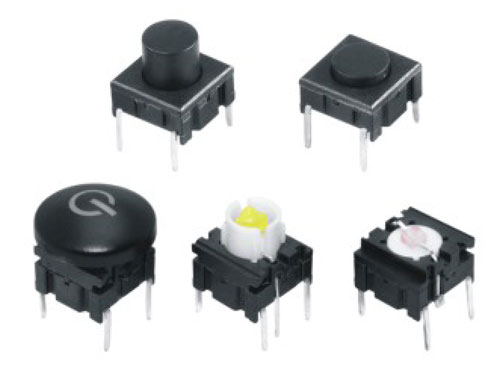

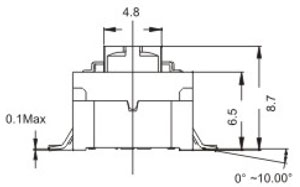

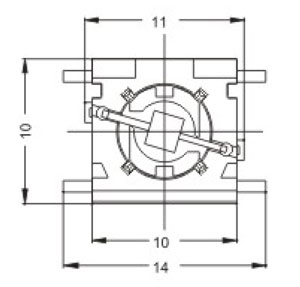

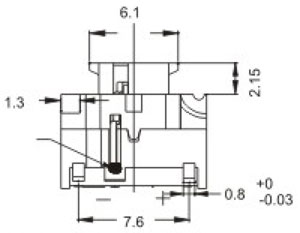

  Illuminated Tactile Switches R2091 Figure   Illuminated Tactile Switches R2091 Structure Diagram     Switch R2091 Structure Diagram    R2091 Structure Diagram



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operation Temperature Electric Life Download
R2091-T4-1H-□□-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T-1M2-□□-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T1-0M1-□N-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T1-0M3-□N-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T4-0H-□□-S□-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T4-0H-□□-G□-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T2-0H-□N-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T2-0H-□N-T□-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
R2091-T1-0H3-□N-V 50mA,24 VDC 50mΩ max.(initial) 10MΩ min.100VDC 250VAC/1 min -40℃ to + 160℃ 1,000,000 cycles NULL
