轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
侧贴轻触开关R1023

•  Rating:12VDC 50mA
•  Travel:0.2mm
•  Life:100,000 cycles
•  Contact Resistance:100mΩ MAX Initial
•  Insulation Resistance :100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Force:2=180gf 3=260gf
•  Operating Temperature:-30℃ ~70℃

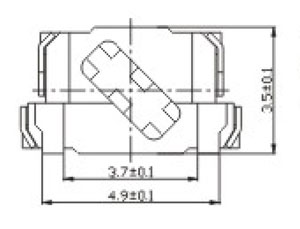

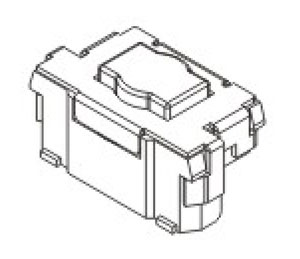

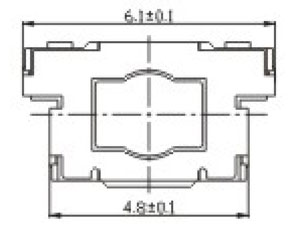

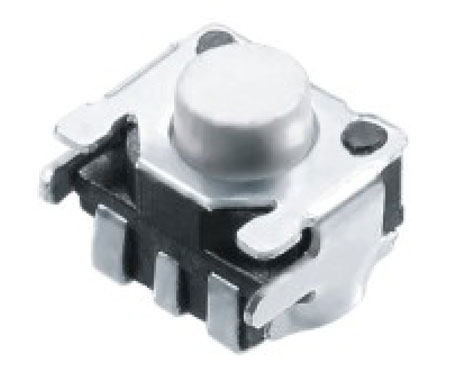

侧贴轻触开关R1023A实拍图 轻触开关R1023结构图    轻触开关结构图    R1023结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature PDF下载
R1023-C-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ 暂无
R1023-35-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ 暂无
R1023-60-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ 暂无
R1023-2-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ 暂无
R1023-2-180-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ 暂无
