轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
密封型轻触开关RTR-85/12

•  Rating12VDC 50mA
•  Contact Resistance100mΩ Max initial
•  Insulation Resistance:100mΩ 500VAC for 1min
•  Dielectric Strength250VAC(50/60Hz) for 1min
•  Operating Force300±100gf   400±100gf
•  Mechanical Life1,000,000 cycles   10,0000 cycles
•  Travel:0.5±0.3mm(CTR-12)   0.8±0.2mm(CTR-8)

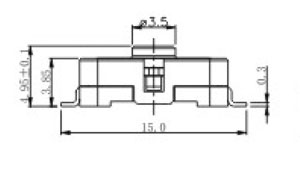

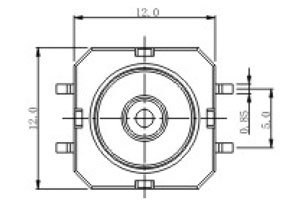

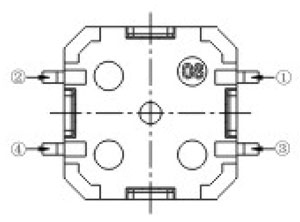

            RTR-85/12实拍图           RTR-85/12结构图      密封型开关结构图     轻触开关结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Mechanical Life Travel PDF下载
RTR-12-M-9-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) 暂无
RTR-12-C-9-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) 暂无
RTR-85-H-4-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) 暂无
RTR-85-M-4-X-V 12VDC 50mA 100mΩ Max initial 100mΩ 500VAC for 1min 250VAC(50/60Hz) for 1min 300±100gf 400±100gf 1,000,000 cycles 10,0000 cycles 0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8) 暂无
