轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
密封型轻触开关RTS(M)(H)W1/2/6/8

•  Rating12VDC 50mA
•  Travel0.5±0.3mm
•  Life1,000,000 cycles
•  Contact Resistance100mΩ MAX Initial
•  Insulation Resistance100mΩ min. 100VDC
•  Dielectric Strength250VAC(50/60Hz)FOR 1MIN
•  Operating Force250±50gf
•  Waterproof GradeIP67

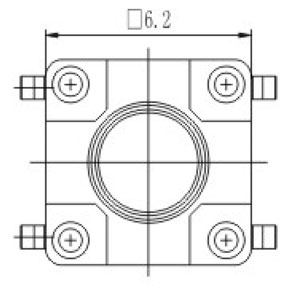

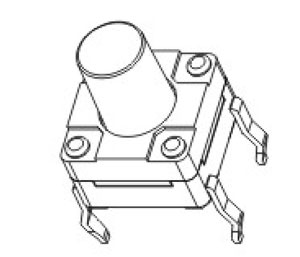

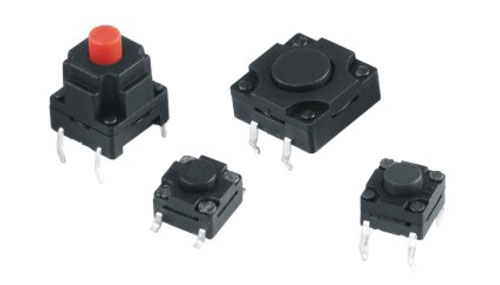

RTS(M)(H)W1/2/6/8实拍图 RTS(M)(H)W1/2/6/8结构图    密封型轻触开关结构图    密封型开关结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Life Waterproof Grade Travel PDF下载
RTSHW6-050-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSMW6-050-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSHW6T-010-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSMW6T-012-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSHW8-010-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSHW10-013-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSMW12-060-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
RTSHW12-060-□-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 1,000,000 cycles IP67 0.5±0.3mm 暂无
