轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
4.5*4.5MM轻触开关RTS(M)(A)-4/R0088

•  Rating:12VDC 50mA
•  Travel:0.25mm
•  Life:50,000 cycles
•  Contact Resistance:100mΩ MAX Initial
•  Insulation Resistance:100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Force:2=180gf 3=260gf
•  Operating Temperature:-20℃ ~70℃

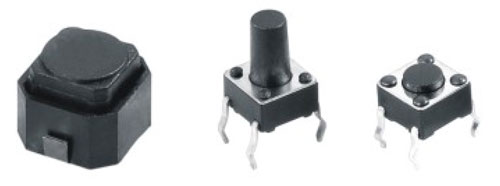

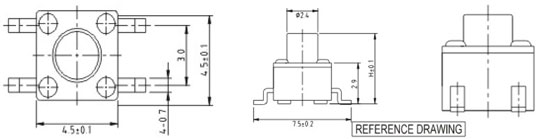

   4.5*4.5MM轻触开关RTS(M)(A)-4/R0088实拍图    4.5*4.5MM轻触开关RTS(M)(A)-4/R0088结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature PDF下载
RTSM-4 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.25mm 50,000 cycles -20℃ ~70℃ 暂无
RTS-4 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.25mm 50,000 cycles -20℃ ~70℃ 暂无
RTSA-4 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.25mm 50,000 cycles -20℃ ~70℃ 暂无
R0088 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.25mm 50,000 cycles -20℃ ~70℃ 暂无
