轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
超薄膜轻触开关R11

•  Rating:12VDC 50mA
•  Contact Resistance:100mΩ MAX Initial
•  Insulation Resistance :100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Force:180gf 260gf
•  Travel:0.25mm
•  Life:100,000~300,000 cycles
•  Operating Temperature:-30℃ ~80℃

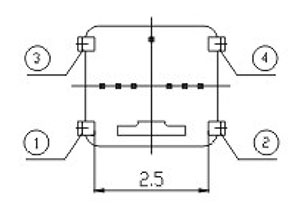

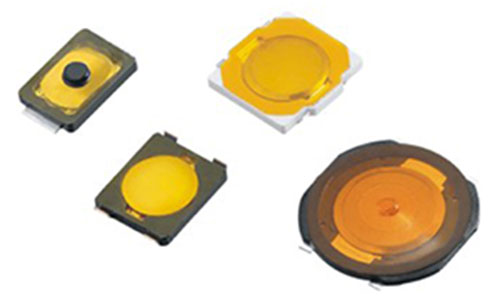

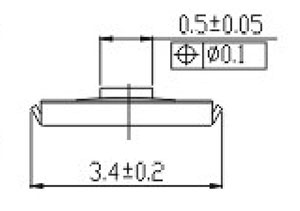

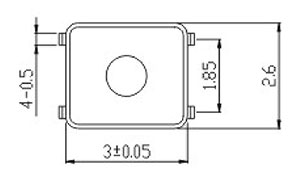

 超薄膜轻触开关R11实拍图 轻触开关R11结构图  超薄膜轻触开关R11  超薄膜开关R11结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature PDF下载
R11-2428 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-2630 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-2616 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-2030 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-3131 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-3131A 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-3738 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-4545 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-4836 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-4827 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
R11-74073 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 180gf 260gf 0.25mm 100,000~300,000 cycles -30℃ ~80℃ 暂无
