主页 › 产品中心微动开关Switch轻触开关RTS(M)(A)(T)(G)-6

轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
6.2*6.2MM带防静电脚轻触开关RTS(M)(A)(T)(G)-6

•  Rating:12VDC 50mA
•  Travel:0.3mm
•  Life:100,000 cycles~1,000,000 cycles
•  ontact Resistance:100mΩ MAX Initial
•  Insulation Resistance:100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Force:2=180gf 3=260gf
•  Operating Temperature:-20℃ ~70℃

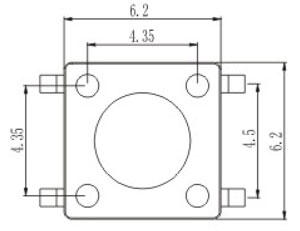

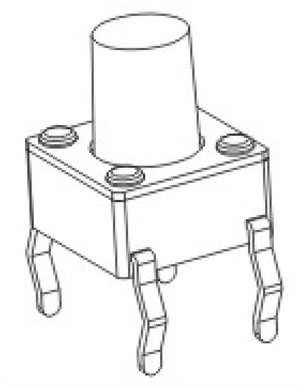

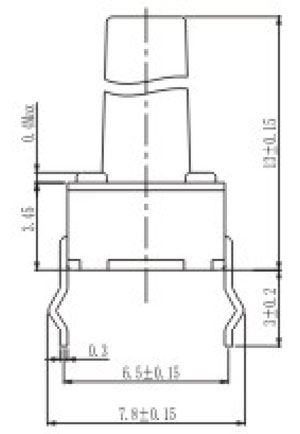

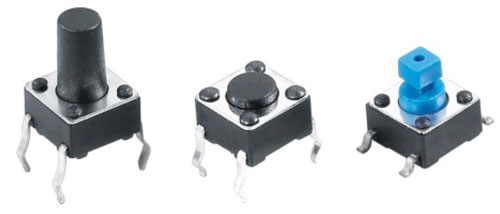

带防静电脚轻触开关RTS(M)(A)(T)(G)-6实拍图 轻触开关RTS(M)(A)(T)(G)-6结构图    带防静电脚RTS(M)(A)(T)(G)-6结构图   6.2*6.2MM RTS(M)(A)(T)(G)-6结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature PDF下载
RTS-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSA-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSA-64 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSAL-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSAM-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSM-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSM-64 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSTL-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTST-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
