主页 › 产品中心微动开关Switch轻触开关RTS(M)(A)(T)(G)(P)-2

轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
12*12MM轻触开关RTS(M)(A)(T)(G)(P)-2

•  Rating:12VDC 50mA
•  Travel:0.3mm
•  Life:100,000 cycles~1,000,000 cycles
•  Contact Resistance:100mΩ MAX Initial
•  Insulation Resistance:100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Temperature:-20℃ ~70℃

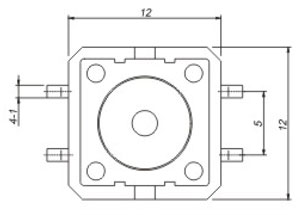

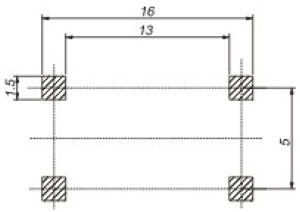

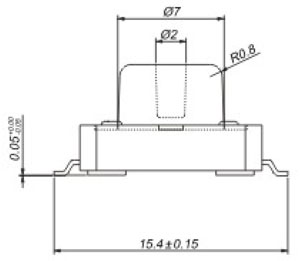

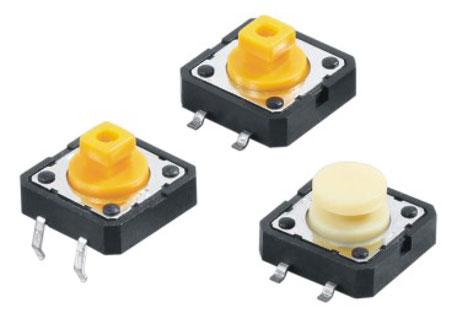

  12*12MM轻触开关RTS(M)(A)(T)(G)(P)-2实拍图  轻触开关RTS(M)(A)(T)(G)(P)-2结构图     12*12MM RTS(M)(A)(T)(G)(P)-2结构图     轻触开关RTS(M)(A)(T)(G)(P)-2结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Travel Life Operating Temperature PDF下载
RTSM-241 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTS-21 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTS-242 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSM-24 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTS-2XX 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTS-24 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSM-242 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTSP-24 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
RTS-241 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ 暂无
