轻触开关又叫按键开关,使用时以满足操作力的条件向开关操作方向施压开关功能闭合接通,当撤销压力时开关即断开,其内部结构是靠金属弹片受力变化来实现通断的。
轻触开关由:嵌件、基座、弹片、按钮、盖板组成其中防水类轻触开关在弹片上加一层聚酰亚胺薄膜,轻触开关有接触电阻荷小、精确的操作力误差、规格多样化等方面的优势。
轻薄轻触开关RZTM

•  Rating:12VDC 50mA
•  Travel:0.25mm
•  Life:100,000~300,000 cycles
•  Contact Resistance:100mΩ MAX Initial
•  Insulation Resistance:100mΩ min. 100VDC
•  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
•  Operating Force:A=180gf B=260gf
•  Operating Temperature:-30℃ ~80℃
•  Height(ZTM-5):15=1.5mm 17=1.7mm
                               20=2.0mm 43=4.3mm

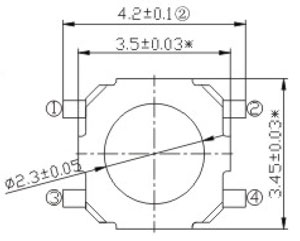

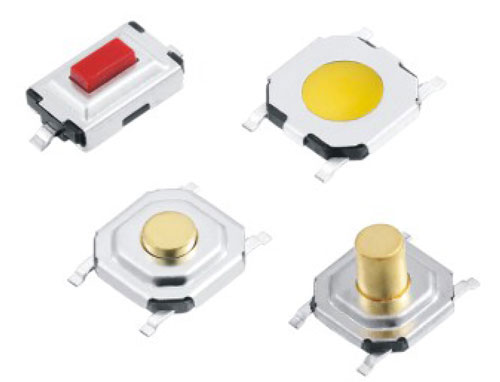

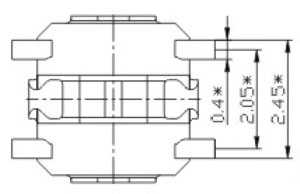

轻薄轻触开关RZTM实拍图 轻触开关RZTM结构图     轻薄开关RZTM结构图    轻薄开关RZTM结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Life Operating Temperature Height(ZTM-5) Travel PDF下载
RZTM-385 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTM-3307 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTM-3309 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTM-3312 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTM-325 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTMU-325 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTM-415 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTMF-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTMR-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTMS-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
RZTMU-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm 暂无
