LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长
带灯按钮开关R0195

•  Rating:2A 36VDC
•  Contact Resistance:50mΩ max(initial)
•  Insulation Resistance:1,000MΩ min 500VDC
•  Dielectric Strength:2,000V RMS 50~60HZ
•  Operating force:5.5N max
•  Electric Life:20,000 cycles
•  Operating Temperation:-20℃ ~+ 70℃

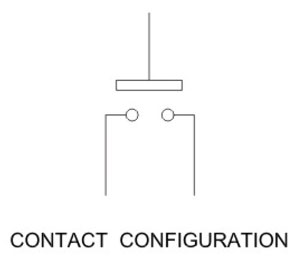

•  Switching Circuit:OFF~(ON)
•  IP class:IP65 protection
•  Torque:5~14NM max.applied to nut

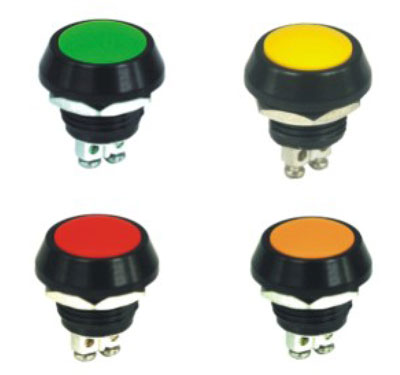

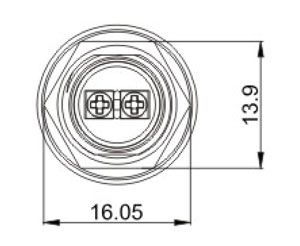

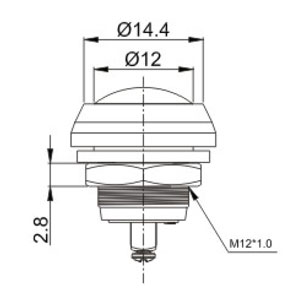

   带灯按钮开关R0195实拍图       带灯按钮开关R0195结构图         开关R0195结构图   R0195结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating force Electric Life Operating Temperation Total Travel PDF下载
R0195-MB-U 2A 36VDC 50mΩ max(initial) 1,000MΩ min 500VDC 2,000V RMS 50~60HZ 5.5N max 20,000 cycles -20℃ ~+ 70℃ / 暂无
R0195-MB-G 2A 36VDC 50mΩ max(initial) 1,000MΩ min 500VDC 2,000V RMS 50~60HZ 5.5N max 20,000 cycles -20℃ ~+ 70℃ / 暂无
R0195-PB-B-R 100mA 24VDC 50mΩ max(initial) 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 2.5mm 暂无
R0195-PB-R 100mA 24VDC 50mΩ max(initial) 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 2.5mm 暂无
R0195-PSB-B 100mA 50VDC 50mΩ max 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 1.5mm 暂无
R0195-PZB-B 100mA 50VDC 50mΩ max(initial) 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 500,000 cycles / 1.5mm 暂无
R0195-A-PB-R-R 100mA 24VDC 50mΩ max(initial) 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 200,000 cycles / 2.5mm 暂无
R0195-A-PB-Y 100mA 24VDC 50mΩ max(initial) 1GΩ min at 500VDC 1,000VAC RMS 2N~5N 200,000 cycles / 2.5mm 暂无
