主页 › 产品中心微动开关SwitchLED发光开关R2915(A)

LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
带灯按钮开关R2915(A)

•  Rating:0.5A,100VAC;0.2A,250VAC;0.5A,25VDC
•  Contact Resistance:Silver contact:50mΩ MAX
•  Insulation Resistance:500VFC,100MΩ MIN
•  Operating Temperature:-40℃ ~85℃
•  Operating Force:200±100gf.(1P2T)
•  Operating Life:200,000 cycles

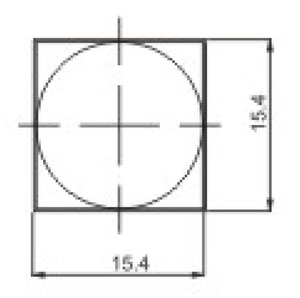

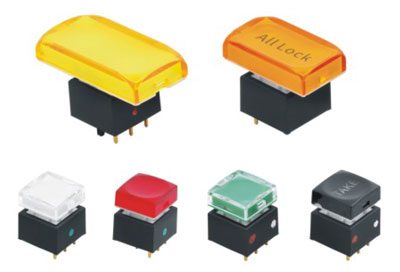

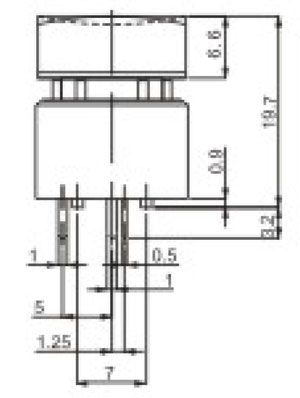

 带灯按钮开关R2915(A)实拍图 带灯按钮开关R2915(A)结构图           开关R2915(A)结构图          R2915(A)结构图



Part Number Rating Contact Resistance Insulation Resistance Operating Temperature Operating Force Operating Life PDF下载
R2915-3M-W-RGBT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915-3M-W-GT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915-3M-W-WT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915A-3M-W-□-T-26 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915A-3M-W-RGBT-34 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915A-3M-W-□T-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915A-3M-W-UT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
R2915AP-3M-W-UT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles 暂无
展开
