LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
照明按键开关R2092

•  Rating:100mA max,42 VAC/DC
•  Contact Resistance:100mΩ max.(initial)
•  Insulation Resistance:100MΩ min
•  Dielectric Strength:1,000 VAC
•  Force:3N±0.75N
•  Travel:0.6±0.2mm
•  Operating Temperature Range:-25℃ ~+ 70℃
•  Mechanical Life:1,000,000 cycles

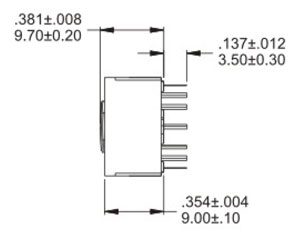

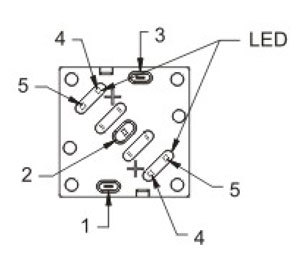

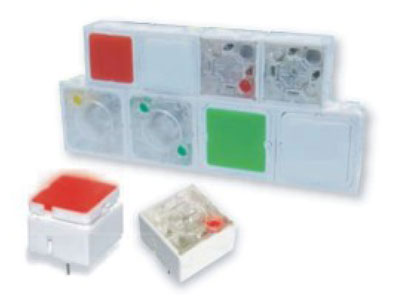

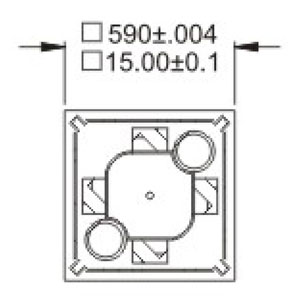

       照明按键开关R2092实拍图       照明按键开关R2092结构图         开关R2092结构图         R2092结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Force Travel Operating Temperature Mechanical Life PDF下载
R2092-5A0 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-5D0 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-5B 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-5C 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-9A 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-9B 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
R2092-9C 100mA max,42 VAC/DC 100mΩ max.(initial) 100MΩ min 1,000 VAC 3N±0.75N 0.6±0.2mm -25℃ ~+ 70℃ 1,000,000 cycles 暂无
