主页 › 产品中心其它产品微动开关SwitchLED发光开关R292

LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
带灯按钮开关R292

•  Circuit:SPST
•  Current Rating:100mA
•  Contact Resistance:200mΩ Max.(Initial)
•  Insulation Resistance:100MΩ Min
•  Operating Force:250±100gf
•  Voltage Rating:12VDC
•  Operating Temperature:-20℃ ~+70℃
•  Dielectric Withstanding Voltage:250VAC for 1 minute
•  Full Travel:4.5mm±0.2mm
•  Mechanical LifeOver:1,000,000 cycles
•  Electrical LifeOver:100,000 cycles
•  Function:Momentary
•  Manual Welding:350℃ for 3 seconds
•  Function:OFF-(ON)

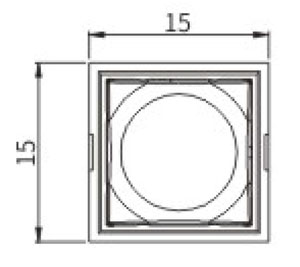

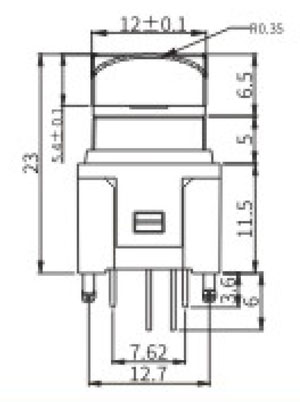

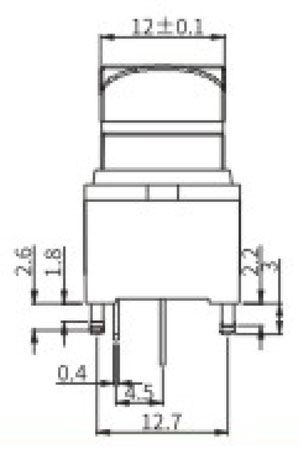

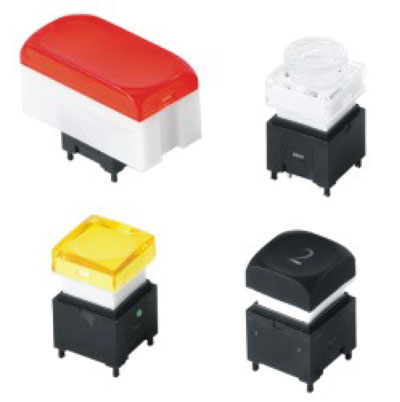

 带灯按钮开关R292实拍图 带灯按钮开关R292结构图    开关R292结构图    R292结构图



Part Number Contact Resistance Insulation Resistance Operating Force Voltage Rating Operating Temperature Dielectric Withstanding Voltage Mechanical Life Electrical Life PDF下载
R2922-□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles 暂无
R2925-□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles 暂无
R2927□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles 暂无
R2927□-2W-RGBT 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles 暂无
R2924□-2W-□T 200mΩ Max.(Initial) 100MΩ Min 250±100gf 12VDC -20℃ ~+70℃ 250VAC for 1 minute Over 1,000,000 cycles Over 100,000 cycles 暂无
展开
