主页 › 产品中心微动开关SwitchLED发光开关R2909

LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
带灯按钮开关R2909

•  Rating:0.1A 30VDC
•  Contact Resistance:50mΩ Max.(Initial)
•  Insulation Resistance:100MΩ Min (at 500 VDC)
•  Dielectric Strength:AC 500V (50/60 Hz for 1 minute)
•  Operating Force:150±100gf(Momentary)
                                 250±100gf(Alternate)
                                 200±100gf(Momentary With Click)
•  Electrical Life:10.000 Cycles Min
•  Ambient Temperature:-10℃ ~+ 80℃

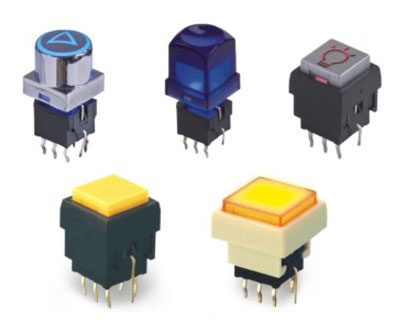

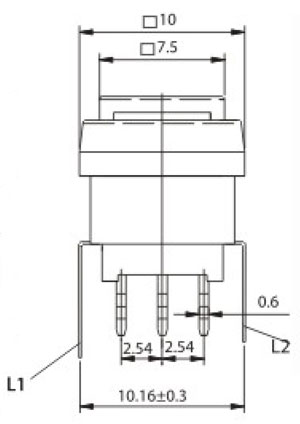

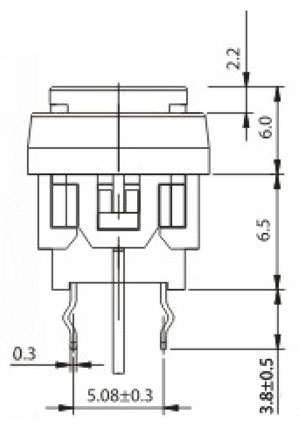

  带灯按钮开关R2909实拍图   带灯按钮开关R2909结构图        开关R2909结构图          R2909结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrical Life Ambient Temperature PDF下载
R29091F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R29093F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290901□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R29094F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R29095F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R29096F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290907□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290902□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290903□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290904□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
R290905□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf(Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暂无
