LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
带灯按钮开关R2995

•  Rating:12mA 24VDC
•  Contact Resistance:50mΩ Max.(Initial)
•  Insulation Resistance:100MΩ min(at 500VDC)
•  Dielectric Strength:AC 250V 50/60Hz FOR 1 min
•  Operating Force:170±100gf(Momentary)
•  Electric Life:1,000,000 cycles Min
•  Ambient Temperature:-10℃ ~ +60℃
•  Total Travel:2.5mm±0.5mm

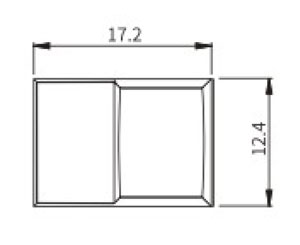

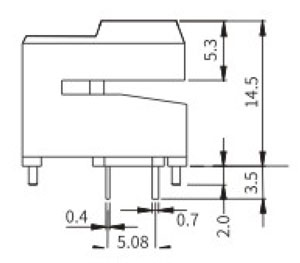

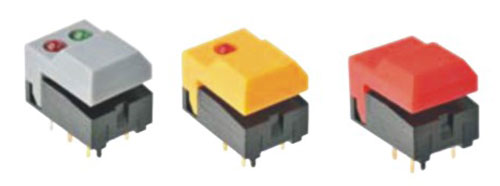

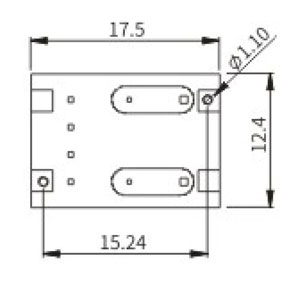

  带灯按钮开关R2995实拍图  带灯按钮开关R2995结构图     开关R2995结构图      R2995结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Ambient Temperature Total Travel PDF下载
R2995-O 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm 暂无
R2995-1L 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm 暂无
R2995-2L 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm 暂无
