LED按钮开关为按钮开关+LED的复合式按钮开关,开关功能件内部带有LED指示灯,既能准确指示开关通断状态,同时又非常方便用户在黑暗中寻找开关位置。它的开和关的操作都在同一位置,手按松开后翘板自动恢复平整状态,手感更好,而且寿命更长。
超薄带灯轻触开关R2995A

•  Pole-Position:1P2T,Right Angle Push on-on momentary
                            Type,with or w/o LED are Available
•  Rating:Power Min./Max.:0.02VA/1.0VA
                 Current Min./Max.:0.1mA~100mA
                 Voltage Min./Max.:DC 20mV~DC 32V
•  Contact Resistance:250mΩmax,1.5VDC;100mA,
                                      by Method of Voltage DROP
•  Insulation Resistance:100MΩ min.500VDC
•  Dielectric Strength:Breakdown is not Allowable;
                                    250 VAC for 1 Minute
•  Operating Force:400±125gf
•  Operating Life:50,000 cycles
•  Operating Temperature Range:-20℃ ~70℃
•  Total Travel:0.20mm MAX

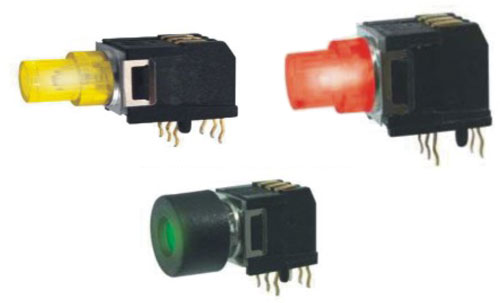

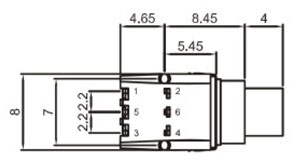

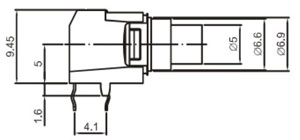

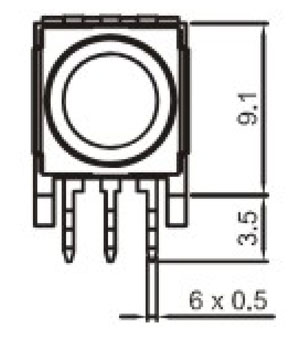

 超薄带灯轻触开关R2995A实拍图     超薄带灯轻触开关R2995A结构图      开关R2995A结构图     R2995A结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Life Operating Temperature Range Total Travel PDF下载
R2995A-NWY Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax,1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX 暂无
R2995A-NWR Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax,1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX 暂无
R2995A-NWG-CAP-K Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V 250mΩmax,1.5VDC;100mA,by Method of Voltage DROP 100MΩ min.500VDC Breakdown is not Allowable;250 VAC for 1 Minute 400±125gf 50,000 cycles -20℃ ~70℃ 0.20mm MAX 暂无
