Home › Product CenterSwitchMetal SwitchRD16

The metal push button switch is a power source that utilizes modern power electronics skills to manipulate the ratio of the time the switch is registered and turned off, and maintains a stable output voltage. The metal push button switch is usually composed of a pulse width modulation (PWM) control IC and a MOSFET. Metal button switches are necessary to have maintenance functions such as overcurrent, overheat, and short circuit in planning.
Diameter 16mm Metal Switches RD16

•  RD16-A1     •  RD16-A2     •  RD16-A3
•  RD16-A4     •  RD16-A5     •  RD16-A6
•  RD16-D1     •  RD16-D2     •  RD16-D3
•  RD16-D4     •  RD16-D5     •  RD16-D6
•  RD16-C1     •  RD16-C5     •  RD16-E2
•  RD16-F1     •  RD16-F4      •  RD16-G2
•  RD16-G3     •  RD16-G4     •  RD16-G5
•  RD16-G6     •  RD16-G7     •  RD16-E1

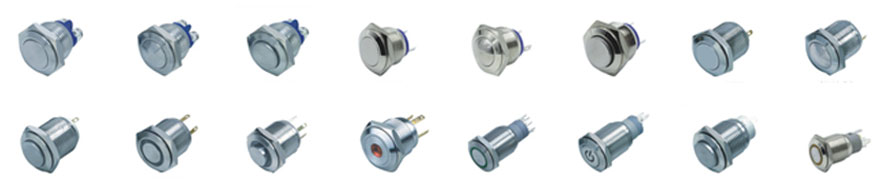

          Diameter 16mm Metal Switches Figure



Part Number Mounting Hold Size Switch Rating Switch Combination Operation Types Head Shape Enclosure Material Degree of protection Lamp Type Head Type Download
RD16-A1 φ16mm 3A/250VAC 1NO Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / / NULL
RD16-A2 φ16mm 3A/250VAC 1NO Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / / NULL
RD16-A3 φ16mm 3A/250VAC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 / / NULL
RD16-A4 φ16mm 2A/36VDC 1NO Resetable Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-A5 φ16mm 2A/36VDC 1NO Resetable Round Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-A6 φ16mm 2A/36VDC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-D1 φ16mm 2A/36VDC 1NO Resetable Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-D2 φ16mm 2A/36VDC 1NO Resetable Round Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-D3 φ16mm 2A/36VDC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-D4 φ16mm 2A/36VDC 1NO Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / Ring Illuminated NULL
RD16-D5 φ16mm 2A/36VDC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 / Ring Illuminated NULL
RD16-D6 φ16mm 2A/36VDC 1NO Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / Dot Illuminated NULL
RD16-C1 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated / NULL
RD16-C5 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Character Illuminated / NULL
RD16-E2 φ16mm 2A/36VDC 1NO Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
RD16-F1 φ16mm 5A/250VAC 1NO 1NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / Ring Illuminated NULL
RD16-F4 φ16mm 5A/250VAC 1NO 1NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / Ring Illuminated NULL
RD16-G2 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated / NULL
RD16-G3 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated / NULL
RD16-G4 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Round Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated / NULL
RD16-G5 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Character Illuminated / NULL
RD16-G6 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD16-G7 φ16mm 3A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD16-E1 φ16mm 2A/36VDC 1NO Self-locking Flat Nickel plated brass/Stainless stell IP67,IK08 / / NULL
