Special Bluetooth Scheme for Intelligent Lighting

With the rapid popularization of smart home industry,intelligent lighting has become the core category of home intelligence with the functions of human body induction,lighting color matching and intelligent adjustment of atmosphere.In order to meet the wireless control requirements of diversified intelligent lighting equipment,RAMSUN has been deeply involved in the field of wireless communication,and launched a dedicated Bluetooth scheme and Bluetooth chip to provide a stable,low-cost and easy-to-network one-stop wireless solution for household and commercial intelligent lighting equipment.


1.Introduction of Bluetooth chip

Bluetooth chip is the core component of intelligent lighting equipment to realize wireless interconnection.Relying on mature Bluetooth wireless communication technology,it can build a stable equipment communication hub and quickly complete equipment pairing,data transmission and intelligent control.Bluetooth chip has built-in RF front-end,digital baseband,protocol stack and other full-set functional modules,giving consideration to communication stability and transmission efficiency,perfectly adapting to the use scenarios of long-term standby,high-frequency regulation and multi-device linkage of intelligent lighting,and solving the pain point of cumbersome wiring and single control of traditional lighting.


2.Overview of Bluetooth scheme for intelligent lighting

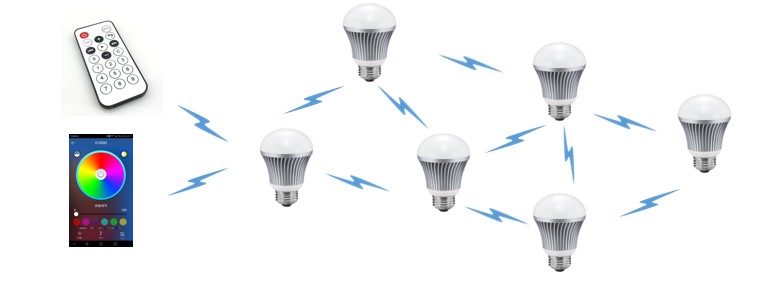

The smart lighting Bluetooth scheme launched by Yingshangwei this time is equipped with high-performance MS1586 Bluetooth chip,which has multiple practical core features and is suitable for mass production of all kinds of smart lamps.Bluetooth scheme supports dual-mode synchronous control of mobile phone APP and physical remote controller,and users can freely switch control modes to adapt to different usage habits;Using low power BLE technology,the standby power consumption of equipment is extremely low,which is more energy-saving for long-term use.At the same time,the hardware structure is simplified,the overall production cost of the product is effectively reduced,and the cost performance advantage is outstanding.In addition,Bluetooth chip supports convenient self-organizing function,which can realize multi-lighting equipment linkage networking without complex debugging,and quickly build a whole house intelligent lighting system to adapt to the use of batch equipment.



3.The specification of low power Bluetooth chip MS1586 is introduced

The performance of MS1586 Bluetooth chip adapts to the requirements of intelligent lighting scene,adopts mature BLE4.0 broadcast wireless transmission mode,is equipped with 256B RAM and 4K WOTP ROM,and has sufficient storage configuration.The Bluetooth scheme chip is equipped with 9 GPIO interfaces,5 PWM outputs,3 timers and 6 12-bit ADCs,with rich interfaces and strong expansibility,which can meet the development of diversified functions such as lighting dimming,color matching and induction control.As a whole,it adopts SOP16 standardized packaging,which is compact and compatible,and is convenient for lamp manufacturers to process patches and iterate products.It is the preferred Bluetooth solution for upgrading smart lighting products of small and medium-sized manufacturers.


As a well-known electronic component supplier and storage solution technology partner in the industry.RAMSUN's core business covers the supply of products such as memory chips,semiconductor devices,single-chip computers,Bluetooth chips and micro-switches.Relying on the experienced technical team,Ramsun provides customers with accurate product selection,circuit design and product development support.For more product information,please contact us.
