High-speed violent fan scheme

In recent years,violent fans have become popular in the fields of consumer electronics,outdoor equipment and power tools with their strong wind output and quick response.In view of the urgent demand for high performance and low noise fan scheme in the market,Yingshang Microelectronics has introduced a mature violent fan scheme,which gives consideration to universality and stability,effectively lowering the product development threshold of customers.


This violent fan scheme adopts non-inductive BLDC motor technology,and the maximum speed can reach 130,000 rpm.Compared with similar products on the market,it has longer battery life and lower temperature rise,and at the same time,it controls the running impact and noise within an ideal range.In order to meet the requirements of fine control of air volume in different scenes,the violent fan scheme integrates PWM pulse width speed regulation function.Users can realize stepless speed change through potentiometers,buttons or external PWM signals-from gentle breeze to full output,with fast speed control response and high precision.For example,when the potentiometer is turned to the maximum or the DAT pin is connected to 5V,the fan will enter the highest speed state;Click or long press the key to complete the startup and shutdown.

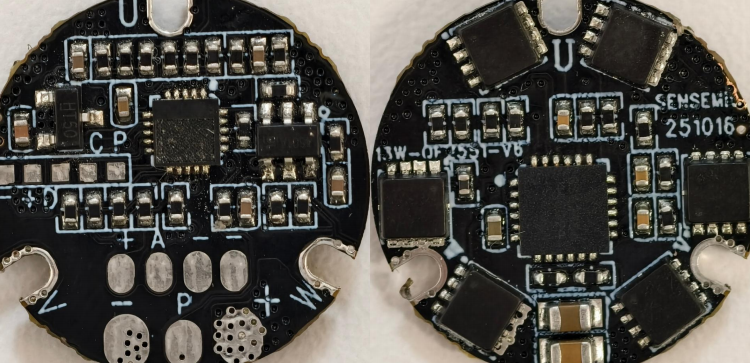

The violent fan drive board used in the scheme is a general drive board specially designed to control low voltage and large air volume fans.The board-level lightweight and miniaturized design has the characteristics of strong motor compatibility,stable temperature performance,PWM pulse width speed regulation,fast speed regulation response and high precision.The driver board supports 3.7V-12.6.V wide voltage input,the maximum operating current is 25A,and the static power consumption is less than 10μA,which is suitable for battery-powered portable devices.




①Operating voltage range:5.5V-8.5VDC.

②Maximum working current:34A MAX.

③Maximum speed:130000RPM(normal use).

④Static power consumption:less than 10uA.

⑤Working environment temperature:-10 to 50℃.

⑥Applicable motor pole pairs:1.

⑦Start mode:soft start.


①The rotating speed can reach 130,000 rpm,providing strong wind power and rapid cooling.

②Non-inductive BLDC motor technology is adopted,which has stable operation,high commutation efficiency and low energy consumption.

③Support for quick start,rapid wind output,and meet the immediate cooling demand.

④equipped with temperature protection,locked-rotor protection,abnormal start protection,etc.,to ensure the stable operation of the equipment under complex working conditions.

⑤Provide a complete set of software and hardware development resources to help customers shorten the development cycle by more than 50%.

⑥Provide customized development services according to customers'needs to meet the individual needs of different application scenarios.


①Professional cleaning:deep dust removal for automobiles and dust removal for industrial equipment.

②Outdoor operation:cleaning the camping site and quickly drying outdoor equipment.

③Industrial auxiliary heat dissipation:provide efficient ventilation for equipment cabinets and production sites.

④Special industrial applications:rapid snow removal,heat dissipation and cooling,etc.
