主页 › 产品中心微动开关Switch按钮开关RPS

按钮开关又称控制按钮,是一种手动且一般可以自动复位的低压电器。按钮通常用于电路中发出启动或停止指令,以控制电磁起动器、接触器、继电器等电器线圈电流的接通和断开。
按钮开关是一种按下即动作,释放即复位的用来接通和分断小电流电路的电器。一般用于交直流电压440V以下,电流小于5A的控制电路中。
照明按钮开关RPS

•  Rating:30VDC 0.1A
•  Contact Resistance:50mΩ Max
•  Insulation Resistance:100MΩ Min(250VDC)
•  Dielectric Strength:250VAC(50/60Hz for 1 min)
•  Operating Force:160±80g
•  Electrically Life:100,000 cycles
•  Operating Temperation Range:-20℃~+70℃
•  Operating Mode:A:Self-Lock B:Non-Lock

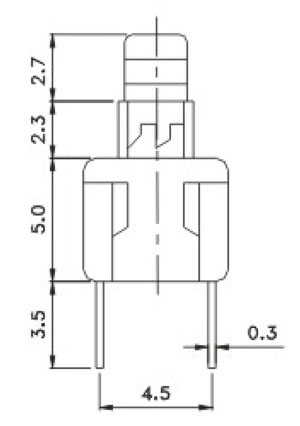

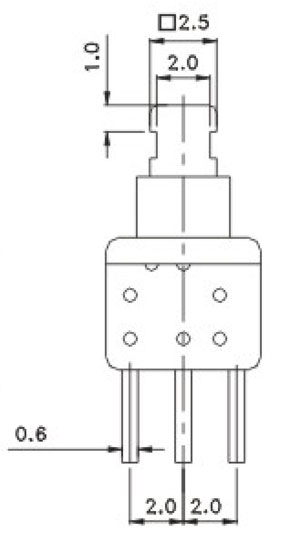

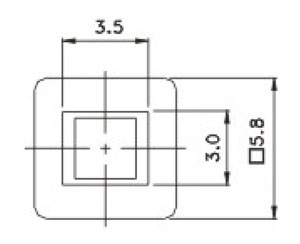

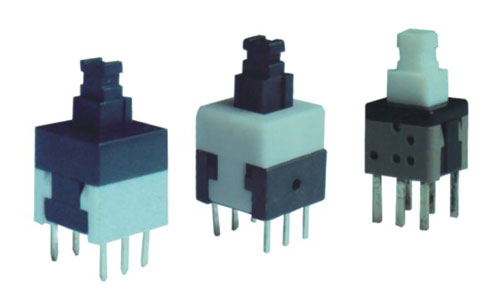

     照明按钮开关RPS实拍图      照明按钮开关RPS结构图            开关RPS结构图             RPS结构图



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrically Life Operating Temp. Operating Mode PDF下载
RPS58A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS58B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS581A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS581B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS582A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS582B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS60A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS60B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS70A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS70B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS70A-1(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS70B-1 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS80A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS80B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS851A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS851B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS852A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS852B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS8513A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
RPS8513B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暂无
