• Rating：3A 125VAC;1.5A 250VAC
• Contact Resistance：50mΩ Max
• Insulation Resistance：DC 500V 100MΩ Min
• Dielectric Strength：AC 1000V 1 minute
• Operation Force：200±100gf
• Total Travel：2.5±0.4mm
• Operation Life：10,000 cycles
• Operation Temperation：0℃ ~+85℃
|
 |
   |

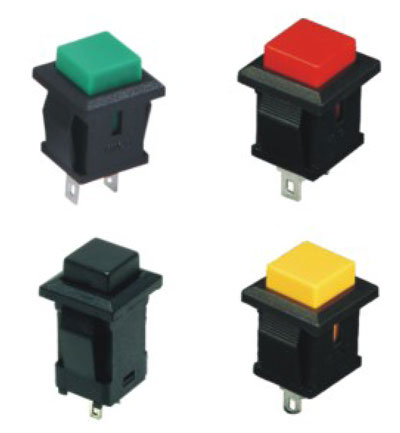

| Part Number | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operation Force | Total Travel | Operation Life | Operation Temperation | PDF下载 |
|---|---|---|---|---|---|---|---|---|---|
| R0194-B-R | 3A 125VAC;1.5A 250VAC | 50mΩ Max | DC 500V 100MΩ Min | AC 1000V 1 minute | 200±100gf | 2.5±0.4mm | 10,000 cycles | 0℃ ~+85℃ | 暂无 |
| R0194-C-G | 3A 125VAC;1.5A 250VAC | 50mΩ Max | DC 500V 100MΩ Min | AC 1000V 1 minute | 200±100gf | 2.5±0.4mm | 10,000 cycles | 0℃ ~+85℃ | 暂无 |
| R0194-A-B | 3A 125VAC;1.5A 250VAC | 50mΩ Max | DC 500V 100MΩ Min | AC 1000V 1 minute | 200±100gf | 2.5±0.4mm | 10,000 cycles | 0℃ ~+85℃ | 暂无 |
