金属按钮开关是利用现代电力电子技能,操控开关管注册和关断的时刻比率,保持安稳输出电压的一种电源,金属按钮开关通常由脉冲宽度调制(PWM)操控IC和MOSFET构成。金属按钮开关在规划中有必要具有过流、过热、短路等维护功能。
直径25mm 金属开关 RD25

•  RN25-A1
•  RN25-A3
•  RN25-B1
•  RN25-B2
•  RN25-B3

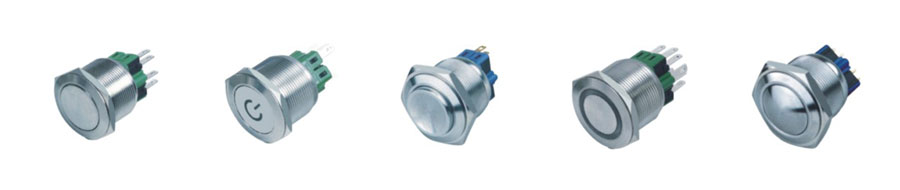

           直径25mm 金属开关 RD25实拍图



Part Number Mounting Hold Size Switch Rating Switch Combination Operation Types Head Shape Enclosure Material Degree of protection Lamp Type PDF下载
RD25-A1 φ25mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暂无
RD25-A3 φ25mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Character Illuminated 暂无
RD25-B1 φ25mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暂无
RD25-B2 φ25mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Round Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated 暂无
RD25-B3 φ25mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Character Illuminated 暂无
